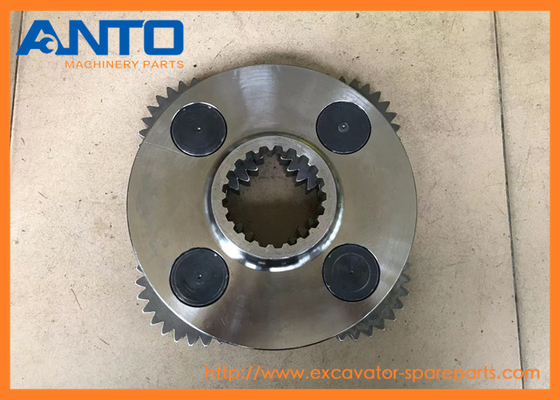

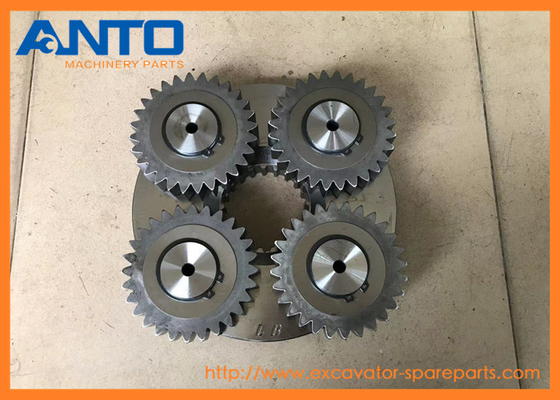

XKAQ-00437 Carrier Excavator Swing Gear For HYUNDAI R290LC7 R290LC7A R300LC7 R305LC7

Μεγάλες Εικόνας : XKAQ-00437 Carrier Excavator Swing Gear For HYUNDAI R290LC7 R290LC7A R300LC7 R305LC7

Λεπτομέρειες:

Place of Origin:	China
Μάρκα:	OEM
Model Number:	XKAQ-00437

Πληρωμής & Αποστολής Όροι:

Minimum Order Quantity:	1 PCS
Τιμή:	Διαπραγματεύσιμα
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Category:	HYUNDAI Excavator Swing Gear	Parts name:	Carrier
Parts number:	XKAQ-00437	Models:	R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
Lead time:	Stock for soon delivery	Warranty:	6/12 Months
Επισημαίνω:	HYUNDAI excavator swing gear , R290LC7 excavator replacement part , excavator swing gear with warranty

XKAQ-00437 Carrier Excavator Swing Gear For HYUNDAI R290LC7 R290LC7A R300LC7 R305LC7

Specification

Spare parts name	Carrier
Equipment Model	R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
Parts Category	HYUNDAI Excavator Swing Gear
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Function

1.Structural Support for Planet Gears:
In a planetary gear system, the carrier (also called a "planet carrier") serves as a rigid framework that holds the planet gears in place. It typically features shafts or pins around which the planet gears rotate, ensuring they maintain proper alignment with both the central sun gear and the outer ring gear. This structural support is vital for maintaining precise meshing between gears, which is essential for efficient power transfer.

2.Torque and Motion Transmission:
The carrier itself is often a rotating component that transmits torque between the gear set and the system’s output. Depending on the gearbox configuration, it may act as an input (receiving power), output (delivering power), or a stationary element (when locked). For example, if the sun gear is driven and the ring gear is fixed, the carrier rotates to transfer power to the next stage of the system, modifying speed and torque in the process.

Compatible models

7-SERIES CRAWLER EXCAVATOR R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7

More other carrier parts applicable for HYUNDAI machine

ZGAQ-02327 CARRIER-HUB

HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S

XKAQ-00653 CARRIER 1 ASSY

R110-7, R110-7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9

XKAH-00449 CARRIER

R210LC3H, R210LC7

ZGAQ-04465 CARRIER-PLANET

R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S

ZGAQ-04466 CARRIER-PLANET

R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S

39Q6-12190 CARRIER 2

HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9...

39Q6-12260 CARRIER NO.1

39Q6-12180 CARRIER ASSY KIT 1

HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W...

39Q6-12250 CARRIER ASSY KIT 2

39Q6-42190 CARRIER 2

HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210...

39Q6-42260 CARRIER 1

39Q6-42250 CARRIER ASSY KIT 1

HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220N

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY	SEE 4101
*-2.	31N8-10180	[1]	SWING REDUCTION GEAR
1	XKAQ-00427	[1]	CASING
2	XKAQ-00428	[1]	SHAFT-DRIVE
3	XKAQ-00117	[1]	BEARING-ROLLER
4	XKAQ-00119	[1]	SEAL-OIL
5	XKAQ-00120	[1]	BEARING-ROLLER
6	XKAQ-00429	[1]	CARRIER ASSY-2
7	XKAQ-00430	[1]	CARRIER-2
8	XKAQ-00431	[4]	GEAR-PLANET-2
9	XKAQ-00432	[4]	PIN ASSY-2
N10.	XKAQ-00433	[1]	PIN-2
N11.	XKAQ-00434	[1]	BUSHING-2
12	XKAQ-00435	[8]	WASHER-THRUST
13	XKAQ-00050	[4]	PIN-SPRING
14	XKAQ-00436	[1]	GEAR-SUN,2
15	XKAQ-00437	[1]	CARRIER ASSY-1
16	XKAQ-00438	[1]	CARRIER-1
17	XKAQ-00439	[4]	GEAR-PLANET-1
18	XKAQ-00440	[4]	PIN ASSY-1
N19.	XKAQ-00441	[1]	PIN-1
N20.	XKAQ-00079	[1]	BUSHING-1
21	XKAQ-00417	[4]	PLATE-SIDE-1
22	XKAQ-00416	[4]	PLATE-SIDE-2
23	XKAQ-00041	[4]	RING-STOP
24	XKAQ-00048	[4]	PIN-SPRING
25	XKAQ-00442	[1]	GEAR-SUN-1
26	XKAQ-00444	[1]	GEAR-RING
27	XKAQ-00443	[1]	PLATE-COVER
28	XKAQ-00445	[1]	SPACER
29	XKAQ-00446	[1]	RING-SPACER
30	XKAQ-00072	[2]	PIN-KNOCK
31	XKAQ-00447	[1]	PLATE-THRUST-3
32	XKAQ-00013	[1]	GEAR-PINION
33	XKAQ-00043	[1]	PLATE-LOCK
34	XKAQ-00064	[8]	BOLT-HEX
35	XKAQ-00042	[2]	BOLT-HEX
36	XKAQ-00292	[1]	WASHER-LOCK
37	XKAQ-00448	[12]	BOLT-SOCKET
38	XKAQ-00049	[1]	PLUG
39	XKAQ-00066	[2]	PLUG
40	XKAQ-00167	[1]	PIPE-GAUGE
41	XKAQ-00449	[1]	BAR-GAGE
42	XKAQ-00143	[1]	AIR BREATHER ASSY

XKAQ-00437 Carrier Excavator Swing Gear For HYUNDAI R290LC7 R290LC7A R300LC7 R305LC7 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
