- 421-46-37110 4214637110 Support KOMATSU Wheel Loader Spare Parts Fitting For WA470-6A WA480-6
| Name |
Support |
| Parts No |
421-46-37110 4214637110 |
| Machine Model |
WA450 WA470 WA480 |
| Category |
Rear Axle Support |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |

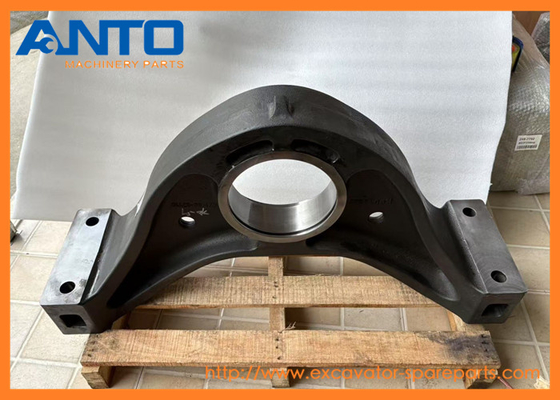

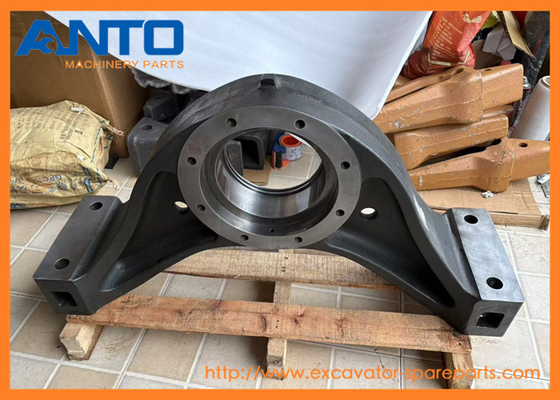

The rear-axle mount serves as a crucial connection part, which is mainly used to fix and support the rear-axle assembly of the wheel loader. It ensures the correct position of the rear-axle during the operation of the equipment, enabling the smooth transmission of power from the transmission system to the wheels. At the same time, it can also absorb and buffer the impact and vibration forces during the movement of the wheel loader, protecting the rear-axle and other related components and improving the reliability and service life of the equipment.
WHEEL LOADERS WA450 WA470 WA480 Komatsu
- More other support parts fit for KOMATSU machine
| 2197-1748C SUPPORT;MOUNT(RH) |
| SOLAR |
| |
| 426-S33-1541 SUPPORT,(FOR JOY STICK STEERING) |
| WA600 |
| |
| 45F-2FH-2110YD SUPPORT |
| FD180, FD200Z |
| |
| 427-03-29110 SUPPORT |
| WA800, WA900 |
| |
| 418-06-33321 SUPPORT |
| WA250PT |
| |
| 156-54-23170 SUPPORT |
| D85C |
| |
| 6218-21-3752 SUPPORT |
| SAA6D140E |
| |
| 427-54-28571 Support |
| WA900 |
| |
| 423-06-A1460 SUPPORT, L.H. |
| WA380, WA420, WA450 |
| |
| KD1-21502-0060 SUPPORT |
| VTA |
| |
| 569-54-12121 SUPPORT |
| HD460 |
| |
| 3EB-41-31790SA SUPPORT |
| FD20/25, FD20H/25H, FD20J/25J, FD28/30, FD30H, FD30J, FG20/25, FG20H/25H, FG28/30, FG30H |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
421-46-37110 |
[1] |
Support,Rear Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 2 |
421-46-37120 |
[1] |
Bushing, Rear Komatsu |
0.28 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 3 |
419-46-12480 |
[1] |
Packing Komatsu |
502.4 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 4 |
421-46-37130 |
[2] |
Washer, Thrust Komatsu |
0.11 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 5 |
424-46-12221 |
[1] |
Plate Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 6 |
01010-61665 |
[8] |
Bolt Komatsu |
0.134 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0101051665", "0101031665", "0101081665"] |
|
| 7 |
01643-31645 |
[8] |
Washer Komatsu |
0.072 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["802170005", "0164301645"] |
|
| 8 |
424-46-12191 |
[1] |
Cover Komatsu |
13.8 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 11 |
421-46-37140 |
[1] |
Bushing,Front Komatsu |
0.34 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 12 |
421-46-37150 |
[1] |
Retainer,Front Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 13 |
01010-81235 |
[6] |
Bolt Komatsu |
0.048 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0101051235", "01010E1235", "801015136"] |
|
| 14 |
01643-31232 |
[6] |
Washer Komatsu |
0.027 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
|
| 15 |
421-46-37160 |
[1] |
Packing Komatsu |
0.12 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 16 |
421-46-37170 |
[1] |
U-packing Komatsu |
0.06 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 17 |
01011-62790 |
[4] |
Bolt Komatsu |
1.01 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 18 |
01643-32780 |
[8] |
Washer Komatsu China |
0.106 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 19 |
01580-02722 |
[4] |
Nut Komatsu |
0.15 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0158012722"] |
|
