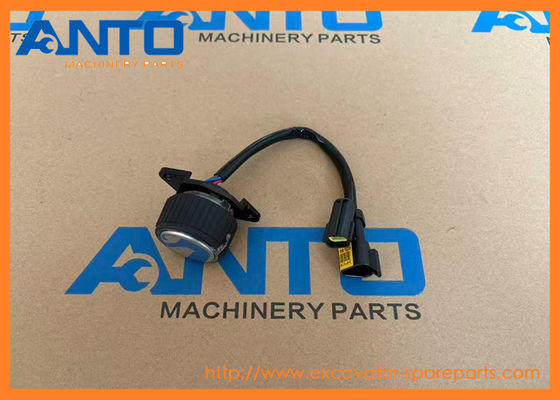

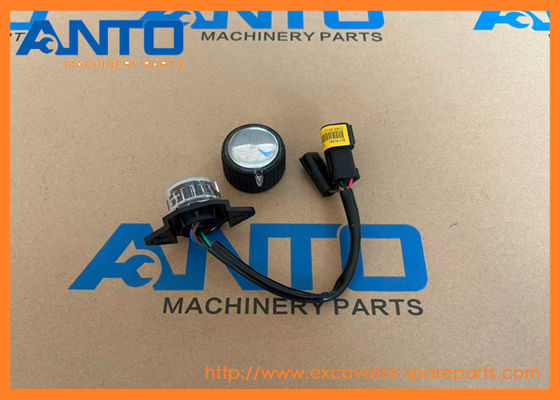

- 21Q4-20811 Accel Dial Assy HYUNDAI Excavator Spare Parts For R140LC-9 R160LC-9 R170W-9
| Name |
Accel Dial Assy |
| Parts No |
21Q4-20811 |
| Machine Model |
R140LC9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 |
| Category |
Bottom Electric |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Precise Speed Control: Allows smooth adjustment of engine RPM from idle to full speed.
2.Durable Design: High-strength materials and sealed construction resist dust, water, and vibration, ensuring long-term reliability.
3.Corrosion Resistance: Metal parts are treated to prevent rust and wear, suitable for harsh working environments.
4.Easy Installation: Standard mounting interface for quick replacement.
5.Compatibility: Can be used in various Hyundai excavator models with similar control systems.
9-SERIES CRAWLER EXCAVATOR R140LC9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 R260LC9S R290LC9 R300LC9S R300LC9SH R320LC9 R330LC9S R330LC9SH R360LC9 R380LC9SH R390LC9 R480LC9 R480LC9S R520LC9 R520LC9S R55-9 R60CR-9 R80CR-9
9-SERIES WHEEL EXCAVATOR R140W9 R170W9 R210W-9 R55W-9 Hyundai
- More other accel dial parts fit for HYUNDAI machine
| 21Q4-20810 ACCEL DIAL ASSY |
| R140LC9, R160LC9, R210LC9 |
| |
| 21Q6-20810 ACCEL DIAL ASSY |
| R145CR9, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9 |
| |
| 21Q4-20812 ACCEL DIAL ASSY |
| HX180L, HX235L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180... |
| |
| 21EN-32300 ACCEL ACTUATOR |
| R140LC9S, R140W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, RB220LC9S, RC215C7H |
| |
| 21EN-32360 ACCEL ACTUATOR |
| R300LC9S, R330LC9S |
| |
| 21EN-32380 ACCEL ACTUATOR(2300L) |
| R300LC9S, R300LC9SH, R330LC9S, R330LC9SH, R380LC9SH, R390LC9, R430LC9SH |
| |
| 21Q4-20810 ACCEL DIAL ASSY |
| R140LC9, R160LC9, R210LC9 |
| |
| 21N8-20830 ACCEL DIAL ASSY |
| R110-7A, R215LC7 |
| |
| 21EN-32260 ACCEL ACTUATOR |
| R110-7, R140LC-7, R140W7, R210LC7H, RC215C7H |
| |
| 11S5-10051 ACCEL LINK ASSY |
| HSL610, HSL810 |
| |
| F53340082 ACCEL PEDAL ASSY |
| HLF20C-2 |
| |
| F53340081 ACCEL PEDAL ASSY |
| HLF20C-2 |
| |
| F53340080 ACCEL PEDAL ASSY |
| HLF20C-2 |
| |
| 11FU-10011 ACCEL LINK ASSY |
| HLF20-5 |
| |
| 11FU-10010 ACCEL LINK ASSY |
| HLF20-5 |
| |
| 11FW-10011 ACCEL LINK ASSY |
| HLF15-5 |
| |
| F21340123 ACCEL PEDAL ASSY |
| HLF15-2, HLF15C-3 |
| |
| F21340122 ACCEL PEDAL ASSY |
| HLF15-2 |
| |
| 21Q6-20810 ACCEL DIAL ASSY |
| R145CR9, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9 |
| |
| 21EN-32200 ACCEL ACTUATOR(2950L) |
| R130W3, R160LC3, R250LC3, R290LC7, R320LC7 |
| |
| 21N8-20901 ACCEL DIAL ASSY |
| R160LC7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| |
| 21Q6-20811 ACCEL DIAL ASSY |
| Hyundai |
| |
| 21EN-32240 ACCEL ACTUATOR |
| R290LC7H, R80-7 |
| |
| 11M8-60310 ACCEL LINK ASSY |
| R55-7, RC60-7 |
| |
| 21M8-32801 ACCEL DIAL ASSY |
| R55-7A, R55W7A |
| |
| 11HA-10300 ACCEL LINK ASSY |
| 20DT, 35DF |
| |
| 21Q4-20812 ACCEL DIAL ASSY |
| HX180L, HX235L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180... |
| |
| 21EN-32300 ACCEL ACTUATOR |
| R140LC9S, R140W9S, R210LC9BC, R210LC9BH, R210W9S, R260LC9S, RB220LC9S, RC215C7H |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
21Q4-20811 |
[1] |
ACCEL DIAL ASSY |
|
| 1 |
21Q4-20812 |
[1] |
ACCEL DIAL ASSY |
|
| 2 |
21E6-10460 |
[3] |
COVER |
|
| 3 |
S131-040826 |
[2] |
SCREW-W/WASHER |
|
| 4 |
21Q6-10604 |
[1] |
HARNESS-RH,CONSOLE |
|
| 5 |
25D1-10650 |
[1] |
CLIP ASSY |
|
| 6 |
S037-101526 |
[8] |
BOLT-W/WASHER |
|
| 7 |
21N4-01100 |
[1] |
PLATE-STEERING |
|
| 8 |
31L7-10200 |
[1] |
CLAMP-TUBE |
|
| 9 |
21N4-01130 |
[5] |
PLATE-CLIP |
|
| 10 |
21Q6-21570 |
[1] |
PLATE |
|
| 11 |
21Q6-10904 |
[1] |
HARNESS-LH CONSOLE |
|
| 12 |
21N4-01111 |
[6] |
CLIP-ECONO SEAL |
|
| 13 |
21NA-10500 |
[1] |
STRAP-EARTH |
|
| 14 |
S035-082026 |
[4] |
BOLT-W/WASHER |
|
| 15 |
25D1-10670 |
[1] |
CLIP |
|
| 16 |
21E7-0612 |
[1] |
PLATE-CONNECTOR |
|
| 17 |
S151-050166 |
[4] |
SCREW-TAPPING |
|
| 18 |
21Q6-21640 |
[1] |
FLANGE |
|
| 19 |
21Q6-22150 |
[1] |
SWITCH-SAFETY |
|
| 20 |
21Q4-30390 |
[1] |
SWITCH-CREEP |
|
| 21 |
S131-043026 |
[2] |
SCREW-W/WASHER |
|
| 22 |
21Q6-11610 |
[1] |
HARNESS-STOP LAMP |
|
| 23 |
21Q4-40300 |
[1] |
CONNECTOR-AIR |
|
| 24 |
21Q4-40011 |
[1] |
SWITCH-AIR COMPROSSOR |
OPTION |
| 25 |
21Q4-02210 |
[1] |
DECAL-EMERGENCY SW |
EXPORT |
| 26 |
21QA-22100 |
[1] |
SWITCH-EMERGENCY STOP |
EXPORT |
| 26 |
21QA-22101 |
[1] |
SWITCH-EMERGENCY STOP |
EXPORT |
| 27 |
S035-061526 |
[2] |
BOLT-W/WASHER |
|
| 28 |
21Q6-21650 |
[1] |
PLATE |
LOCAL |
| 29 |
21Q6-21810 |
[1] |
GROMMET |
|
| 30 |
21Q6-21900 |
[1] |
HARNESS-LH CONSOLE |
PROPORTION/RCV |
| 31 |
21Q6-10607 |
[1] |
HARNESS-RH CONSOLE |
PROPORTION/RCV |
