| Category |
Boom Parts |
| Name |

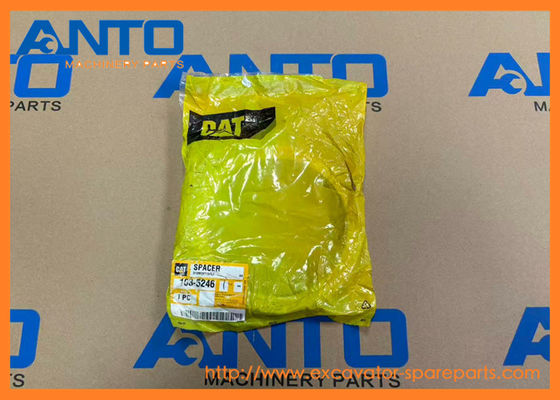

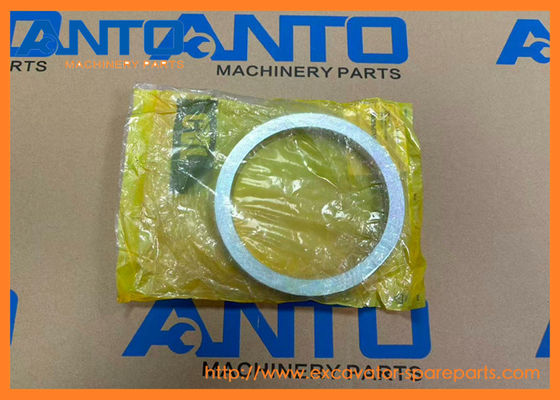

Spacer |
| Parts No |
103-5246 1035246 |
| Machine Number |
324D 325C 325D L 330C 336D 340D L 345C |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Accessory Drive Alignment: In the front engine system, it ensures the crankshaft pulley, water pump pulley, and alternator pulley are perfectly aligned. Misalignment here causes premature belt wear, squealing noises, or belt failure (which can lead to overheating or electrical system issues).
2.Timing Gear Clearance Control: In some C13/C18 engine variants, it maintains the correct backlash (gap) between timing gears. Proper backlash prevents gear tooth damage (e.g., chipping, pitting) and ensures accurate valve timing (critical for engine power and fuel efficiency).
3.Component Protection: By preventing metal-to-metal contact between adjacent parts (e.g., the harmonic balancer and front cover), it eliminates friction-induced wear and reduces the risk of oil leaks (from damaged seals caused by misaligned components).
EXCAVATOR 324D 325C 325D L 330B L 330C 330C FM 330C L 330C MH 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E L 336E LN 340D L 340D2 L 345B II 345B II MH 345B L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 350 350 L 365B 365B II 365C 365C L 375 385B 385C L 568 FM LL
FRONT SHOVEL 5080
MINI HYD EXCAVATOR 307B 307C
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L
WHEELED EXCAVATOR W345B II W345C MH C.ater.pillar.
- More other spacer applied to C A T heavey machine
| 2013003 SPACER |
| 324D, 330C, 330C L, 330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E L, 336E LN, 336F L, 340D L, 340D2 L |
| |
| 7Y0644 SPACER |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7I8153 SPACER |
| 350 |
| |
| 5I8405 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8406 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8407 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8408 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8409 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8410 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8411 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8412 SPACER-SPRING |
| 330, 330 FM L, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| |
| 5I8413 SPACER-SPRING |
| 330, 330 FM L, 330B L, 345B, 345B L, W330B |
| |
| 1025649 SPACER |
| 305.5, 305.5E, 306, 306E, 307, 307B, 307C, 307D |
| |
| 1461934 SPACER |
| 305.5, 306, 307B, 307C, 307D, 308C |
| |
| 1398140 SPACER |
| 305.5, 306, 307B, 307C, 307D |
| |
| 1397874 SPACER |
| 307B |
| |
| 1397915 SPACER |
| 307B, 307C, 308C |
| |
| 2336933 SPACER |
| 302.5, 302.5C |
| |
| 1654352 SPACER |
| 307B |
| |
| 2110015 SPACER |
| 307B |
| |
| 1654388 SPACER |
| 307B, 315D L, 316E L, 318E L, 793D, 963D, D6K2, D6K2 LGP |
| |
| 1881835 SPACER |
| 307B, 795F AC, 795F XQ, 973C |
| |
| 1874251 SPACER |
| 307B |
| |
| 2105512 SPACER |
| 307B |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
465-4595 |
[1] |
BOOM & BEARING AS |
|
| 1A. |
228-5622 |
[2] |
BUSHING |
|
| 2 |
093-0074 |
[2] |
SHIM (1-MM THK) |
|
| 3 |
093-0106 |
[1] |
SHIM (2-MM THK) |
|
| 4 |
093-0364 |
[1] |
SPACER (103X140X12-MM THK) |
|
| 5 |
103-5246 |
[2] |
SPACER (123X150X14-MM THK) |
|
| 6 |
130-4360 |
[1] |
PIN AS |
|
| 7 |
147-3957 B |
[1] |
SHIM (0.5-MM THK) |
|
| 8 |
324-0938 |
[1] |
PLATE |
|
| 9 |
350-6277 |
[1] |
PIN |
|
| 10 |
350-6278 |
[2] |
PLATE |
|
| 11 |
489-6694 |
[1] |
PIN AS |
|
| 12 |
447-1709 M |
[2] |
BOLT (M16X2X45-MM) |
|
| 13 |
447-1718 M |
[6] |
BOLT (M20X2.5X50-MM) |
|
| 14 |
451-2175 |
[2] |
WASHER-HARD (17.5X30X3.5-MM THK) |
|
| 15 |
451-2176 |
[7] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 16 |
453-2844 M |
[1] |
BOLT (M20X2.5X30-MM) |
|
| 17 |
093-0349 |
[1] |
WASHER (22X60X6-MM THK) |
|
| 18 |
9X-4600 |
[2] |
SEAL-LIP TYPE |
|
| 19 |
3B-8489 |
[1] |
FITTING-GREASE (1/8-27 PTF) |
|
| 20 |
8T-6764 |
[1] |
PLUG-PIPE (1/8-27-THD) |
|
| 21 |
093-0090 B |
[2] |
SHIM (1-MM THK) |
|
| 22 |
093-0122 B |
[1] |
SHIM (2-MM THK) |
|
| 23 |
133-2427 B |
[1] |
SHIM (0.5-MM THK) |
|
| |
B |
|
USE AS REQUIRED |
|
| |
M |
|
METRIC PART |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
