| Category |
Travel Motor Parts |
| Name |

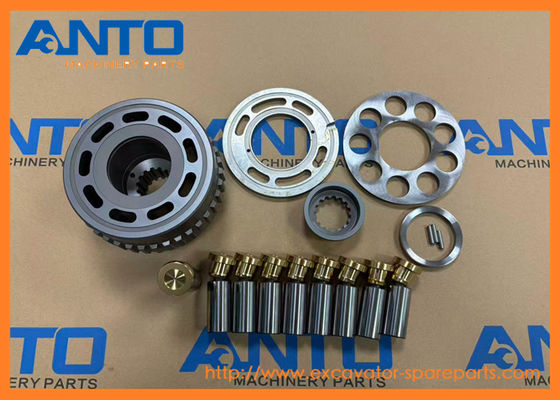

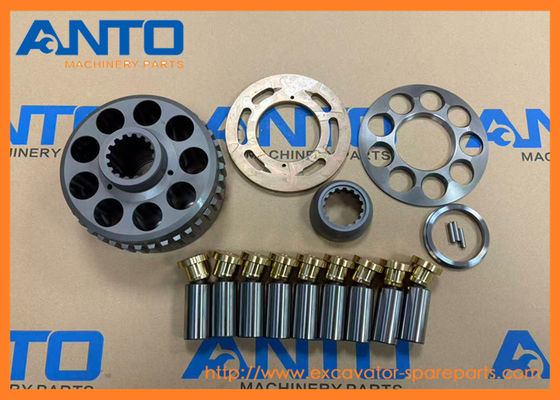

Rotary Kit |
| Parts No |
XKAY-00452 |
| Machine Number |
R110-7A R140LC-7 R180LC7A R210LC7 RC215C7 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Bearings: Reduce friction between rotating shafts in the swing gearbox, ensuring smooth torque transfer and preventing shaft misalignment.
2.Hydraulic Seals/O-Rings: Prevent leakage of hydraulic fluid (from the swing motor) and gear oil (from the gearbox), maintaining system pressure and avoiding contamination.
3.Gear Washers: Distribute load between planetary gears in the swing gearbox, reducing wear and noise during rotation.
4.Dust Cover & Grease: Protect the swing bearing from dirt, debris, and corrosion—extending the bearing’s service life and ensuring consistent swing performance.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 RC215C7 RC215C7H Hyundai
- More other rotary kit applied to HYUNDAI heavey machine
| XKAY-00452 ROTARY KIT |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| |
| ZGAR-00271 ROTARY GROUP |
| R200W7 |
| |
| ZGAR-00282 ROTARY-HYD SECTION |
| R200W7 |
| |
| XJDD-00109 ROTARY GROUP |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XJDD-00121 ROTARY-HYD SECTION |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XKAY-00963 ROTARY KIT |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,... |
| |
| 39Q6-41260 ROTARY KIT |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| 39Q7-41130 ROTARY KIT |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q8-41250 ROTARY KIT |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| |
| XKAY-02162 ROTARY KIT |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| XKAY-01927 ROTARY KIT |
| HX160L, HX180L, R210LC9 |
| |
| XJDD-01125 ROTARY-HYD SECTION |
| R160W9A, R170W9, R180W9A |
| |
| XJDD-01124 ROTARY GROUP |
| R160W9A, R170W9, R180W9A |
| |
| XKAY-01124 ROTARY KIT |
| HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
SEE 4150 |
| 1 |
XKAY-00442 |
[1] |
CASING-SHAFT |
|
| 2 |
XKAY-00443 |
[10] |
PLUG |
|
| K3. |
XKAY-01091 |
[1] |
OIL SEAL |
|
| *-1. |
XKAY-00445 |
[1] |
SWASH PISTON KIT |
|
| N4. |
XKAY-00446 |
[2] |
SWASH PISTON |
|
| N5. |
XKAY-00447 |
[2] |
RING-PISTON |
|
| 6 |
XKAY-00448 |
[1] |
SHAFT |
|
| 7 |
XKAY-00449 |
[1] |
BEARING |
|
| 8 |
XKAY-00450 |
[2] |
BALL-STEEL |
|
| 9 |
JA7B1O01A |
[1] |
Deleted... |
|
| *-2. |
XKAY-00452 |
[1] |
ROTARY KIT |
|
| *-2A. |
XKAY-00453 |
[1] |
CYLINDER BLOCK KIT |
|
| N10. |
XKAY-00824 |
[1] |
CYLINDER BLOCK |
|
| 11 |
XKAY-00455 |
[1] |
SEAT-SPRING |
|
| 12 |
XKAY-00456 |
[1] |
SPRING |
|
| 13 |
XKAY-00457 |
[1] |
PLATE-END |
|
| 14 |
XKAY-00458 |
[1] |
RING-SNAP |
|
| 15 |
XKAY-00459 |
[3] |
PIN |
|
| 70 |
XKAY-00829 |
[1] |
VALVE PLATE |
|
| *-2B. |
XKAY-00460 |
[1] |
RETAINER KIT |
|
| 16 |
XKAY-00461 |
[1] |
GUIDE-BALL |
|
| 17 |
XKAY-00462 |
[1] |
PLATE-SET |
|
| *-2C. |
XKAY-00463 |
[1] |
PISTON KIT |
|
| N18. |
XKAY-00464 |
[9] |
PISTON ASSY |
|
| 19 |
XKAY-00465 |
[3] |
PLATE-FRICTION |
|
| 20 |
XKAY-00466 |
[3] |
PLATE |
|
| 21 |
XKAY-00467 |
[1] |
PISTON-PARKING |
|
| K22. |
XKAY-00468 |
[1] |
O-RING |
|
| K23. |
XKAY-00469 |
[1] |
RING-BACK UP |
|
| K24. |
XKAY-00470 |
[1] |
O-RING |
|
| K25. |
XKAY-00471 |
[1] |
RING-BACK UP |
|
| 26 |
XKAY-00472 |
[1] |
ORIFICE |
|
| K27. |
XKAY-00473 |
[3] |
O-RING |
|
| K28. |
XKAY-00474 |
[1] |
O-RING |
|
| 69 |
XKAY-00513 |
[1] |
BEARING |
|
| 72 |
XKAY-00515 |
[1] |
PLUG |
|
| 77 |
XKAY-01097 |
[AR] |
SHIM |
|
| K. |
XKAY-00518 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
