| Category |
Travel Motor Parts |
| Name |

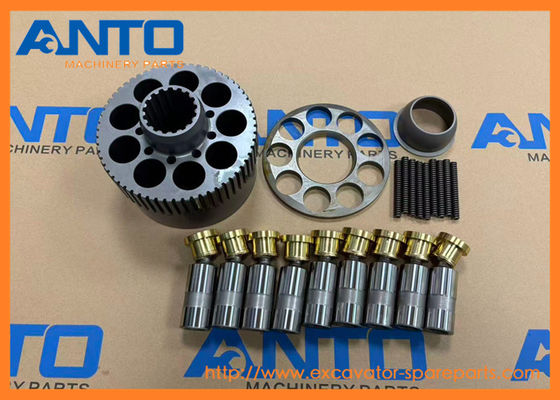

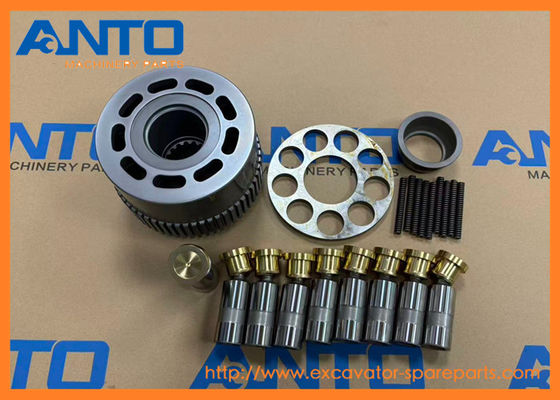

Rotary Kit |
| Parts No |
39Q6-41260 |
| Machine Number |
R210LC7A R215LC7 RD210-7 RD210-7V RD220-7 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Restores Swing Performance: Replaces worn or damaged components to fix issues like slow rotation, jerky movement, or inability to hold position.
2.Prevents Costly Downtime: A complete kit eliminates the need to source individual parts, speeding up repairs and getting equipment back to work faster.
3.Ensures Leak-Free Operation: High-quality seals and rotary joint prevent hydraulic oil leaks, reducing maintenance costs and protecting the environment.
4.Extends System Lifespan: By replacing wear-prone parts proactively, the kit delays major swing system failures, extending the overall service life of the excavator/loader.
7-SERIES CRAWLER EXCAVATOR R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R300LC9SH RB220LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai
- More other rotary kit applied to HYUNDAI heavey machine
| XKAY-00452 ROTARY KIT |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| |
| ZGAR-00271 ROTARY GROUP |
| R200W7 |
| |
| ZGAR-00282 ROTARY-HYD SECTION |
| R200W7 |
| |
| XJDD-00109 ROTARY GROUP |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XJDD-00121 ROTARY-HYD SECTION |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XKAY-00963 ROTARY KIT |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,... |
| |
| 39Q6-41260 ROTARY KIT |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| 39Q7-41130 ROTARY KIT |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q8-41250 ROTARY KIT |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| |
| XKAY-02162 ROTARY KIT |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| XKAY-01927 ROTARY KIT |
| HX160L, HX180L, R210LC9 |
| |
| XJDD-01125 ROTARY-HYD SECTION |
| R160W9A, R170W9, R180W9A |
| |
| XJDD-01124 ROTARY GROUP |
| R160W9A, R170W9, R180W9A |
| |
| XKAY-01124 ROTARY KIT |
| HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
39K6-40100 |
[1] |
TRAVEL MOTOR ASSY |
TYPE 1 |
| *. |
39K6-40101 |
[1] |
TRAVEL MOTOR ASSY |
TYPE 1 |
| *. |
38K6-40100 |
[1] |
TRAVEL MOTOR ASSY |
TYPE 2 |
| *. |
38K6-40101 |
[1] |
TRAVEL MOTOR ASSY |
TYPE 2 |
| *-1. |
39K6-41100 |
[1] |
TRAVEL MOTOR UNIT |
TYPE 1 |
| *-1. |
38K6-41100 |
[1] |
TRAVEL MOTOR UNIT |
TYPE 2 |
| K2. |
39Q6-41120 |
[8] |
PLUG |
|
| K29. |
39Q6-41420 |
[1] |
PIN-PARALLEL |
|
| 30 |
39K6-41430 |
[20] |
SPRING |
|
| K32. |
S471-600404 |
[1] |
PIN-SPRING |
|
| K33. |
39Q6-41450 |
[2] |
PIN-PARALLEL |
|
| K34. |
39Q6-41462 |
[1] |
COVER-REAR |
OLD |
| K34. |
39Q6-41462AS |
[1] |
COVER-REAR |
NEW |
| K35. |
39Q7-41490 |
[1] |
MAIN SPOOL ASSY |
|
| K36. |
39Q6-41530 |
[2] |
COVER |
|
| K37. |
39Q6-41540 |
[2] |
SPRING |
|
| K38. |
39Q6-41550 |
[2] |
RESTRICTOR |
|
| K39. |
S109-120356 |
[8] |
BOLT-SOCKET |
|
| NK40. |
39Q6-41560 |
[2] |
O-RING |
|
| K41. |
39Q6-41570 |
[2] |
SEAT-SPRING |
|
| K42. |
39Q7-41580 |
[2] |
RELIEF VALVE ASSY |
|
| 42-3. |
S631-12S004 |
[1] |
O-RING |
|
| 42-8. |
S631-021004 |
[1] |
O-RING |
|
| 42-9. |
S641-021001 |
[2] |
RING-BACK UP |
|
| 42-12. |
S631-015004 |
[1] |
O-RING |
|
| 42-13. |
S641-015001 |
[2] |
RING-BACK UP |
|
| 42-16. |
39Q6-41890 |
[1] |
O-RING |
|
| K43. |
39Q6-41670 |
[2] |
SPRING |
|
| K44. |
39Q6-41680 |
[2] |
PLUG |
|
| NK45. |
S631-009004 |
[2] |
O-RING |
|
| NK46. |
S631-011004 |
[4] |
O-RING |
|
| K47. |
39Q6-41691 |
[1] |
SPOOL |
|
| K48. |
39Q6-41700 |
[1] |
PLUG |
|
| K49. |
39Q6-41710 |
[1] |
SEAT-SPRING |
|
| K50. |
39Q6-41720 |
[1] |
PIN-PARALLEL |
|
| K51. |
39Q6-41730 |
[1] |
SPRING |
|
| K52. |
39Q6-41740 |
[1] |
CONNECTOR |
|
| NK53. |
S631-014004 |
[2] |
O-RING |
|
| 54 |
S109-180506 |
[4] |
BOLT-SOCKET |
|
| 55 |
S109-180406 |
[4] |
BOLT-SOCKET |
|
| K56. |
39Q6-41760 |
[3] |
VALVE-CHECK |
|
| K57. |
39Q6-41770 |
[3] |
SPRING |
|
| K58. |
39Q6-41780 |
[4] |
PLUG |
|
| NK59. |
S631-008004 |
[6] |
O-RING |
|
| K60. |
39Q6-41750 |
[2] |
PLUG |
|
| K61. |
39Q6-41870 |
[1] |
RESTRICTOR |
|
| K62. |
39Q6-41860 |
[1] |
RESTRICTOR |
|
| KN63. |
39K6-41790 |
[1] |
NAME PLATE |
|
| K64. |
39Q6-41800 |
[2] |
RIVET |
|
| *-2. |
39Q6-42100 |
[1] |
TRAVEL REDUCTION GEAR |
SEE 4132 |
| *-2. |
39Q6-42101 |
[1] |
TRAVEL REDUCTION GEAR |
SEE 4132 |
| K. |
39Q6-41150 |
[1] |
PISTON KIT |
SEE ILLUST |
| K. |
39Q6-41260 |
[1] |
ROTARY KIT |
SEE ILLUST |
| K. |
39Q6-41270 |
[1] |
CYLINDER BLOCK KIT |
SEE ILLUST |
| K. |
39Q6-41300 |
[1] |
RETAINER KIT |
SEE ILLUST |
| K. |
39Q6-41810 |
[1] |
O-RING KIT |
SEE ILLUST |
| K. |
39Q6-41820 |
[1] |
D-RING KIT |
SEE ILLUST |
| K. |
38K6-41462K |
[1] |
REAR COVER KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
