| Category |
Swing Motor Parts |
| Name |

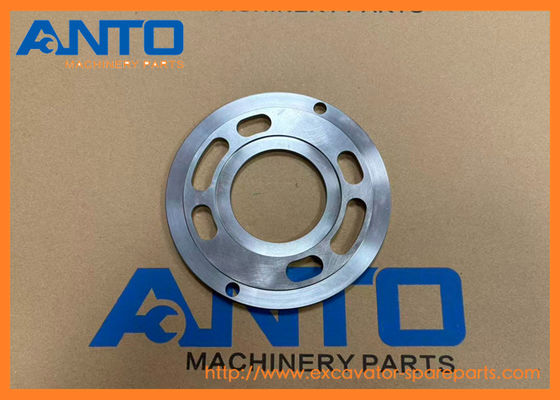

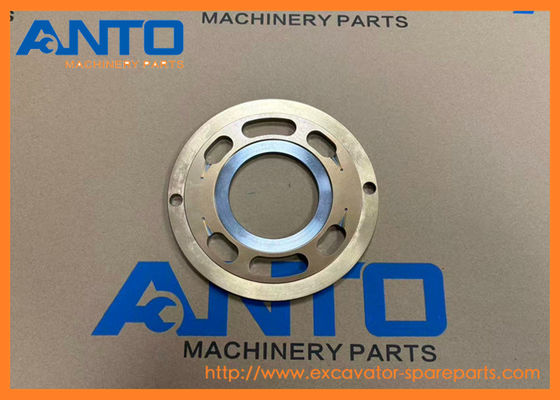

Valve Plate |
| Parts No |
39Q6-11270 |
| Machine Number |
HX160L HX180L HX220L HX220NL R160LC9 R180LC9 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Flow Direction Control: Directs hydraulic oil into and out of the cylinder block, enabling the pump to convert mechanical energy (from the engine) into hydraulic energy.
2.Pressure Maintenance: Prevents internal oil leakage via tight sealing, ensuring the hydraulic system maintains the required pressure for heavy-duty tasks (e.g., lifting rocks or pushing debris).
3.Friction Reduction: Pressure balance grooves and smooth surface minimize wear between the valve plate and cylinder block, extending the pump’s service life.
4.Overpressure Protection: Integrated relief channels prevent system pressure from exceeding safe limits, safeguarding the pump, hoses, and actuators from damage.
7-SERIES CRAWLER EXCAVATOR R210LC7A
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L HX220L HX220NL Hyundai
- More other plate applied to HYUNDAI heavey machine
| 24L3-30710 PLATE |
| 100D-7, 110D-7E, 15BT-9, 16B-9, 180D-9, 22B-9, 22BH-9, 250D-9, 40B-9, 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL7303, HL7303C, HL730T... |
| |
| 21EM-45070 PLATE-VANE |
| 33HDLL, 42HDLL, HX180L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7, ... |
| |
| 21K8-25271 PLATE |
| HX220L, HX300L |
| |
| 21K8-60030 PLATE |
| HX220L |
| |
| 21K8-25222 PLATE |
| HX220L, HX260L |
| |
| 39Q6-43410 PLATE-VALVE |
| HX220L, HX220NL |
| |
| 21K8-25272 PLATE |
| HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L |
| |
| 21K8-25223 PLATE |
| HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| |
| 21QB-20080Y7 PLATE-CLAMP |
| R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9BC, R210LC9BH, R210W9S, RB... |
| |
| 21Q7-48300 PLATE |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| |
| 21Q7-48200 PLATE-CLIP |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| |
| JB0A4003 PLATE |
| R210W9MH |
| |
| 39Q6-41370 PLATE-SEPERATED |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| |
| 39Q6-41360 PLATE-FRICTION |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9 |
| |
| 39Q6-11210 PLATE-RETAINER |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| |
| XJDD-00902 PLATE(3.1T)-BACK UP |
| R170W7A, R170W9S, R180W9S |
| |
| 31N4-13080GG PLATE-LOCK |
| R170W9S, R180W9S |
| |
| 71Q4-10240 PLATE WA |
| R170W9 |
| |
| 71Q4-21491 PLATE WA |
| R140W9A, R160W9A, R170W9, R180W9A |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N*. |
38Q5-10150 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 2 |
| N*. |
38Q5-10151 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TYPE 2 |
| *-1. |
38Q5-11100 |
[1] |
SWING MOTOR UNIT |
TYPE 2 |
| 1 |
39Q6-11110 |
[1] |
CASING |
|
| *-A. |
39Q6-11160 |
[1] |
ROTARY KIT |
INCL *-B, *-C, 12 |
| *-B. |
39Q6-11170 |
[1] |
CYLINDER BLOCK KIT |
INCL 8, 9 |
| N8. |
39Q6-11180 |
[1] |
BLOCK-CYLINDER |
|
| N9. |
39Q6-41290 |
[9] |
SPRING |
|
| *-C. |
39Q6-11190 |
[1] |
RETAINER KIT |
INCL 10, 11 |
| N10. |
39Q6-11200 |
[1] |
GUIDE-BALL |
|
| N11. |
39Q6-11210 |
[1] |
PLATE-RETAINER |
|
| N12. |
39Q6-11220 |
[9] |
PISTON ASSY |
|
| NK2. |
39Q6-11660 |
[1] |
SEAL-OIL |
|
| 3 |
39Q6-11120 |
[1] |
SHAFT |
|
| 4 |
S601-040004 |
[1] |
RING-SNAP |
|
| 5 |
39Q6-11130 |
[1] |
BEARING-ROLLER |
|
| 6 |
39Q6-11140 |
[1] |
BEARING-NEEDLE |
|
| 7 |
39Q6-11150 |
[1] |
PLATE-SWASH |
|
| 13 |
39Q6-41361 |
[4] |
PLATE-FRICTION |
|
| 14 |
39Q6-41370 |
[4] |
PLATE-SEPARATED |
|
| 15 |
39Q6-11250 |
[1] |
PISTON-PARKING |
|
| 16 |
39Q8-11180 |
[26] |
SPRING |
|
| 17 |
S471-800454 |
[1] |
PIN-SPRING |
|
| NK18. |
Y172-043004 |
[1] |
O-RING |
|
| NK19. |
Y172-041004 |
[1] |
O-RING |
|
| 20 |
39Q6-11270 |
[1] |
PLATE-VALVE |
|
| 21 |
S471-800254 |
[2] |
PIN-SPRING |
|
| NK22. |
Y172-042004 |
[1] |
O-RING |
|
| 23 |
39Q6-11281 |
[1] |
CASING A-VALVE |
|
| 24 |
39Q6-11290 |
[2] |
VALVE-CHECK |
|
| 25 |
39Q6-11300 |
[2] |
SPRING-CHECK VALVE |
|
| 26 |
39Q6-11671 |
[2] |
PLUG |
|
| NK27. |
S631-040004 |
[2] |
O-RING |
|
| 28 |
39Q6-41750 |
[3] |
PLUG |
|
| NK29. |
S631-011004 |
[3] |
O-RING |
|
| 30 |
39Q5-11310 |
[2] |
VALVE ASSY-RELIFE |
|
| 31 |
39Q6-11420 |
[2] |
REACTIONLESS VLV ASSY |
|
| 32 |
39Q6-11500 |
[2] |
PLUG |
|
| NK33. |
S631-012004 |
[2] |
O-RING |
|
| NK34. |
S631-018004 |
[2] |
O-RING |
|
| 35 |
39Q6-11510 |
[1] |
VALVE ASSY-TIME DELAY |
|
| 36 |
39Q6-11601 |
[1] |
GAUGE-LEVEL |
|
| 37 |
S109-180456 |
[2] |
BOLT-SOCKET |
|
| 38 |
S109-180556 |
[4] |
BOLT-SOCKET |
|
| 39 |
P220-430202 |
[1] |
PLUG-HEX |
|
| 40 |
38Q6-11650 |
[1] |
NAME PLATE |
|
| 40 |
38Q6-11651 |
[1] |
NAME PLATE |
|
| 41 |
39Q6-41800 |
[2] |
RIVET |
|
| *-2. |
39Q5-12100 |
[1] |
SWING REDUCTION GEAR |
SEE 4115 |
| *-2. |
39Q5-12101 |
[1] |
SWING REDUCTION GEAR |
SEE 4115 |
| K. |
39Q6-11700 |
[1] |
SEAL KIT |
SEE ILLUST |
| K. |
38Q5-11710 |
[1] |
VALVE CASING KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
