| Category |
JCB Spare Parts |
| Name |

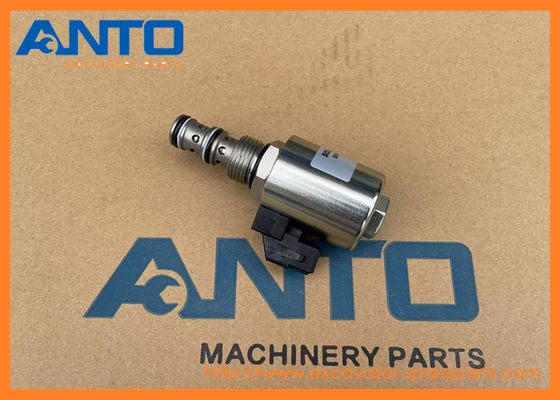

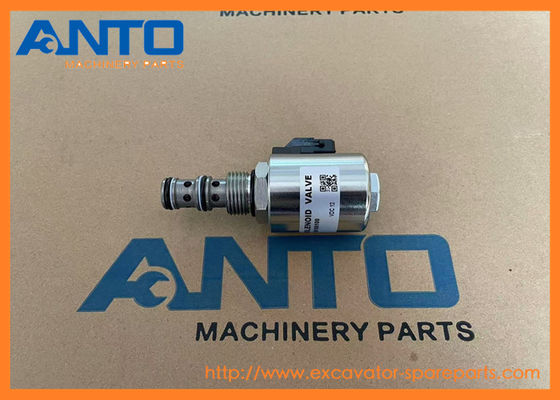

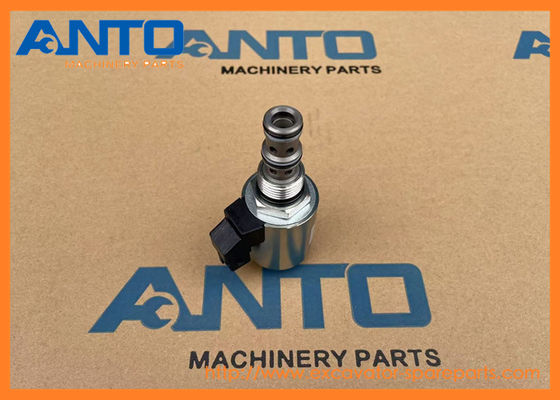

Solenoid Valve |
| Parts No |
25/105100 25/974100 |
| Machine Number |
1400B 1550B 214 215 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. When energized by the machine’s electrical system, the solenoid coil generates a magnetic field. |
| 2. The magnetic force moves the valve spool, opening or closing fluid passages in the valve body. |
| 3. This controls the flow of hydraulic oil or fuel to the target component (e.g., cylinder, motor), activating or deactivating the machine function. |
| 4. When de-energized, the spool returns to its original position (NO/NC) via a spring. |
| Core Functions |
- Controls hydraulic actuator movement (boom lift/lower, bucket curl/dump, machine travel) |
| - Regulates fuel flow in the engine fuel system (e.g., shut-off valve for safe engine stopping) |
| - Enables precise, on-demand operation of machine functions via the operator’s control panel |
| - Prevents unintended fluid flow, enhancing machine safety and efficiency |
LOADERS 3CX 4CX 1400B 1550B 214 215 JCB
- More other valve applied to JCB heavey machine
| 25/220635 Valve Diverter |
| JCB |
| |
| 25/220636 Valve Diverter |
| JCB |
| |
| 25/222858 Valve Trailer Brake |
| JCB |
| |
| 25/221052 Valve check |
| JCB |
| |
| 20/950908 Valve pilot, DFR 1 |
| JCB |
| |
| KSJ2465 Valve Remote Control |
| JCB |
| |
| 335/C1595 Valve Pressure Relief |
| JCB |
| |
| 347/22258 Valve Solenoid |
| JCB |
| |
| 335/C1588 Valve Non Return |
| JCB |
| |
| 332/F6361 Valve Pilot |
| JCB |
| |
| 25/220651 Valve swing brake |
| JCB |
| |
| 446/18400 Valve lubrication |
| JCB |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
813/50055 |
[1] |
Gasket |
|
| 2 |
445/31000 |
[1] |
Adapter block assembly |
|
| 2 |
449/51400 |
[1] |
Adapter block assembly |
|
| 2 |
449/01200 |
[1] |
Adapter block assembly |
|
| 2A. |
445/07304 |
[1] |
Spool |
|
| 3 |
814/00307 |
[1] |
Spring |
|
| 3 |
814/00230 |
[1] |
Spring NLA see MSS on Plug |
|
| 3 |
814/00412 |
[1] |
Spring |
|
| 4 |
445/07303 |
[1] |
Plug |
|
| 4 |
816/80063 |
[1] |
Plug |
|
| 5 |
1321/0308Z |
[14] |
Bolt |
|
| 6 |
1420/0007Z |
[16] |
Washer (M8) |
|
| 7 |
1321/3311Z |
[2] |
Bolt M8 x 45 |
|
| 8 |
25/974100 |
[1] |
Valve solenoid c/w AMP connectors |
|
| 8A. |
25/974002 |
[1] |
Coil |
Vickers |
| 8A. |
25/974001 |
[1] |
Coil |
JFP |
| 9 |
25/103000 |
[3] |
Valve solenoid |
|
| 9A. |
25/103001 |
[2] |
Coil (ref 02/124661) |
Vickers |
| 9A. |
35/900601 |
[2] |
Coil solenoid, round 63mm x 45mm x 19.41H |
JFP |
| 10 |
35/100801 |
[1] |
Kit-seal solenoid valve |
|
| 12 |
1392/3112Z |
[12] |
Capscrew M5 x 50mm |
|
| 13 |
1321/3420Z |
[1] |
Bolt |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
